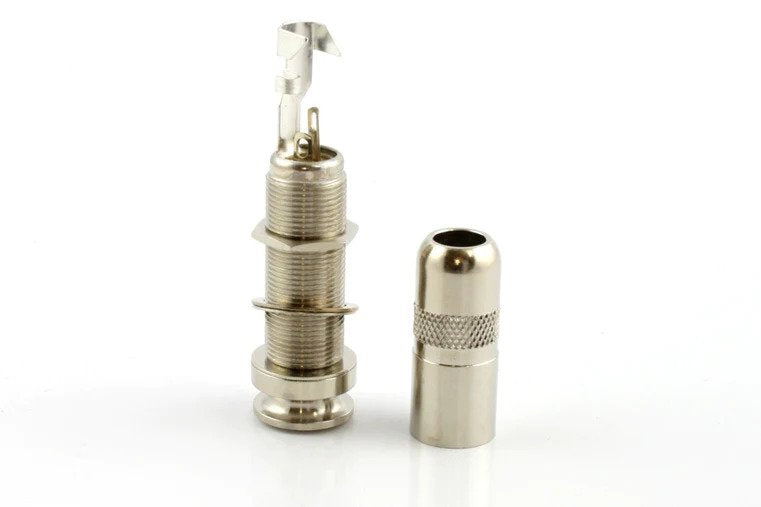

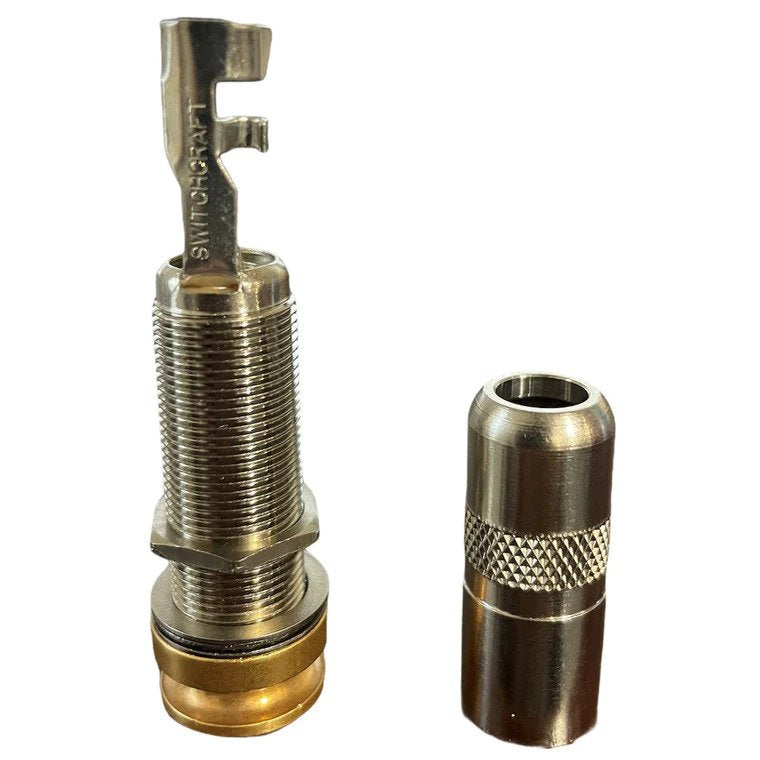

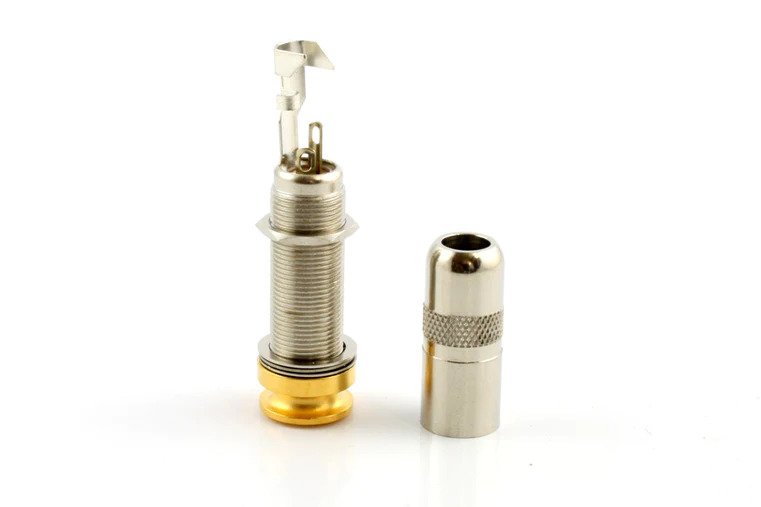

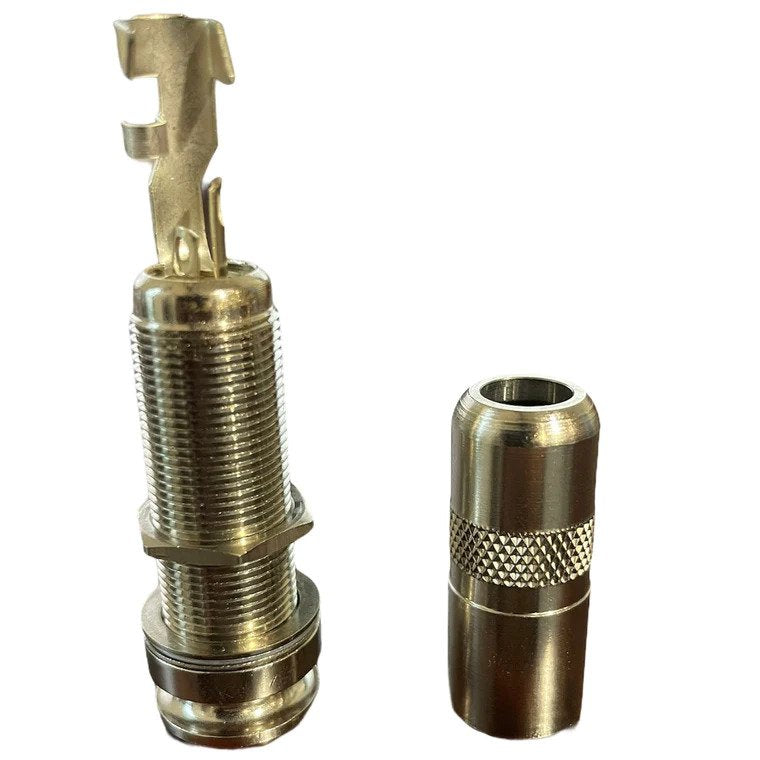

Switchcraft 3 Conductor End-Pin Jack
Switchcraft® stereo end pin jack with housing. Easily tighten the housing from inside the guitar for a simple installation. This end pin jack can be wired for a mono or stereo setting.
Specifications:
- Standard 1/4” plug
- 2-1/4"L x 5/8"W (57mm x 15.9mm) at 23.1 grams
- Required mounting hole 15/32” (11.9mm) diameter: 1/2” (12.7mm)
- Mono or Stereo operation
- Thread: 3/8 x 32 (Imperial thread)
- Color: Gold, Nickel

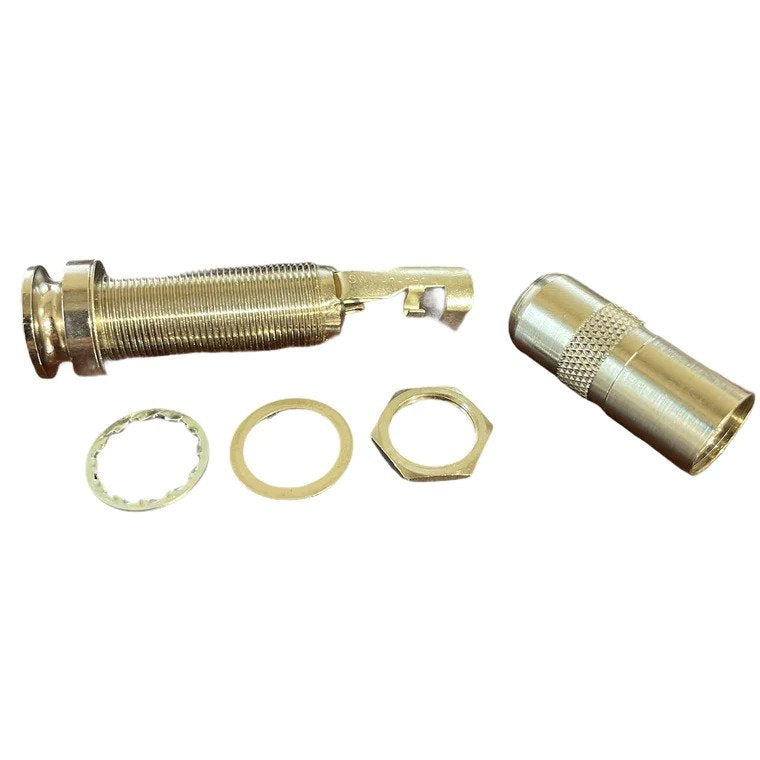

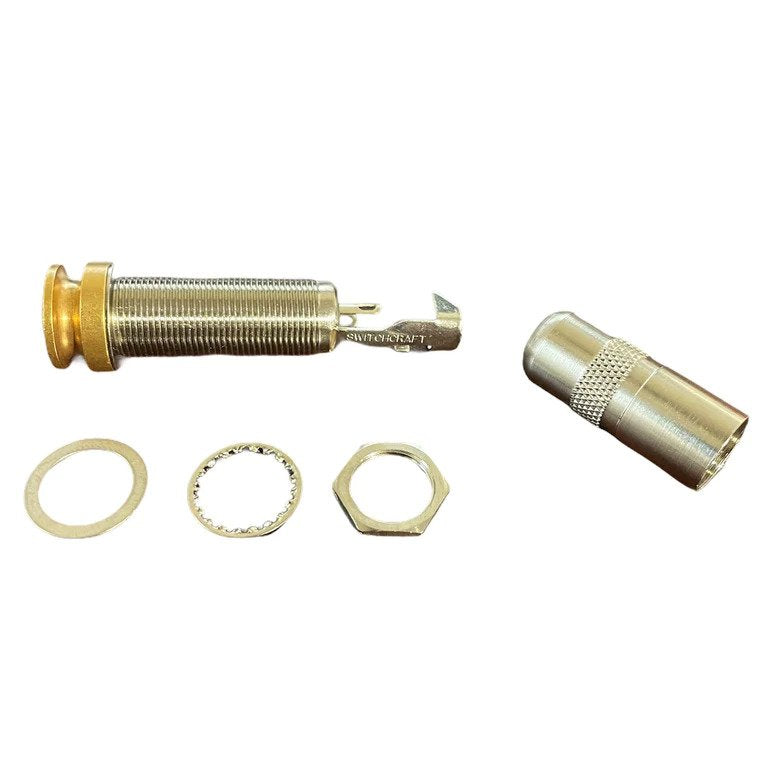

Complete with housing, nut, and 2 washers.
