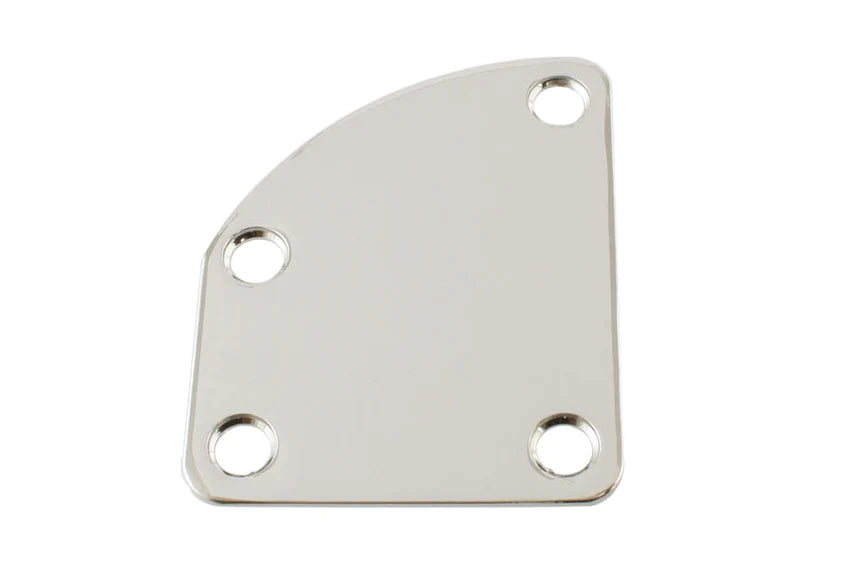

4 Hole Curved Neckplate for Guitar or Bass
- Modfied neckplate suitable for guitar/bass with cut away neck heel.
- Includes 4 mounting screws
- Long side length: 64mm (mounting hole spacing centre to centre is 50mm)
- Short side length: 34mm (mounting hole spacing is 24mm)
- Width (at bottom): 50mm (mounting hole spacing is 37mm)
- Distance between top two mounting screw holes (centre to centre) is 44mm
- Thickness of plate: 2.4mm
For standard neckplate, click HERE
