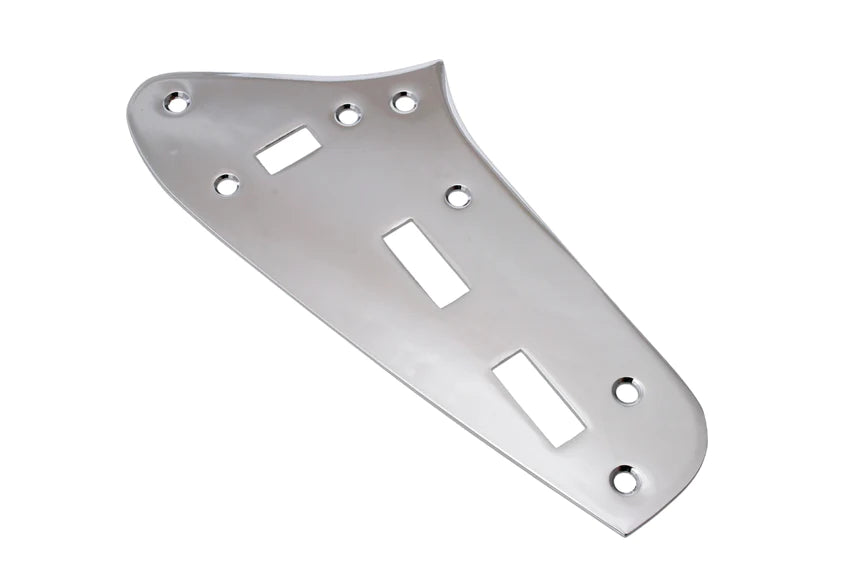

Allparts Upper Switch Plate for Jaguar

• Switch control plate for Fender Jaguar
• Installed above pickguard near the upper horn
• Overall Length: 135mm
• Width at widest point: 60mm
• Thickness: 1.5mm
• Distances between each plate mounting screwhole (centre to centre, clockwise from uppermost):
  1-2: 46mm
  2-3: 24mm
  3-4: 50mm
  4-5: 16mm
  5-1: 116mm
• Distance between switch mounting screwholes (c to c): 28mm
• Small switch hole dimensions: 10.7mm x 6mm
• Large switch hole dimensions: 18.6mm x 6.7mm
