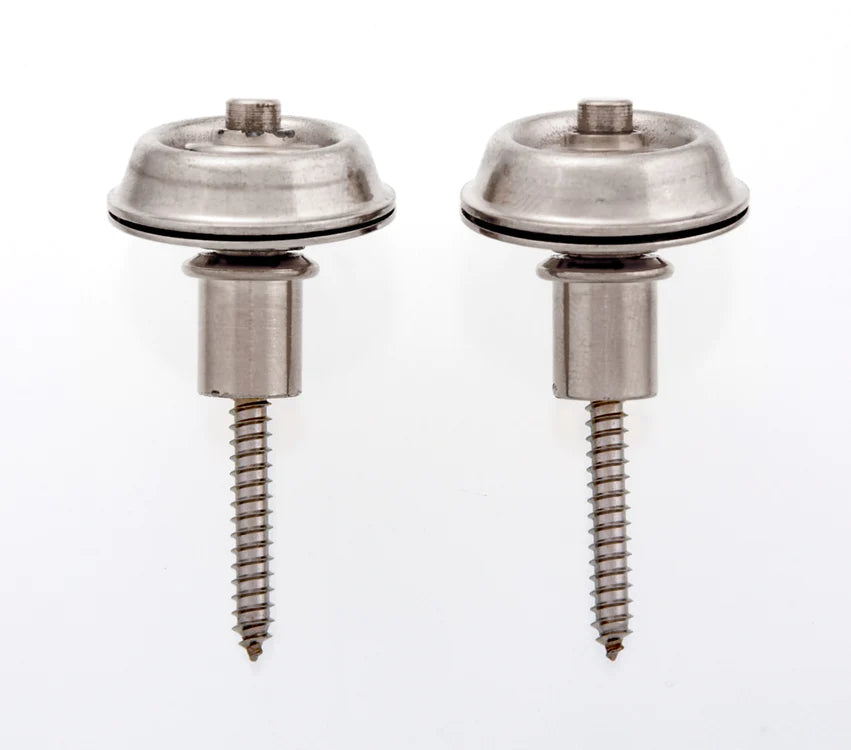

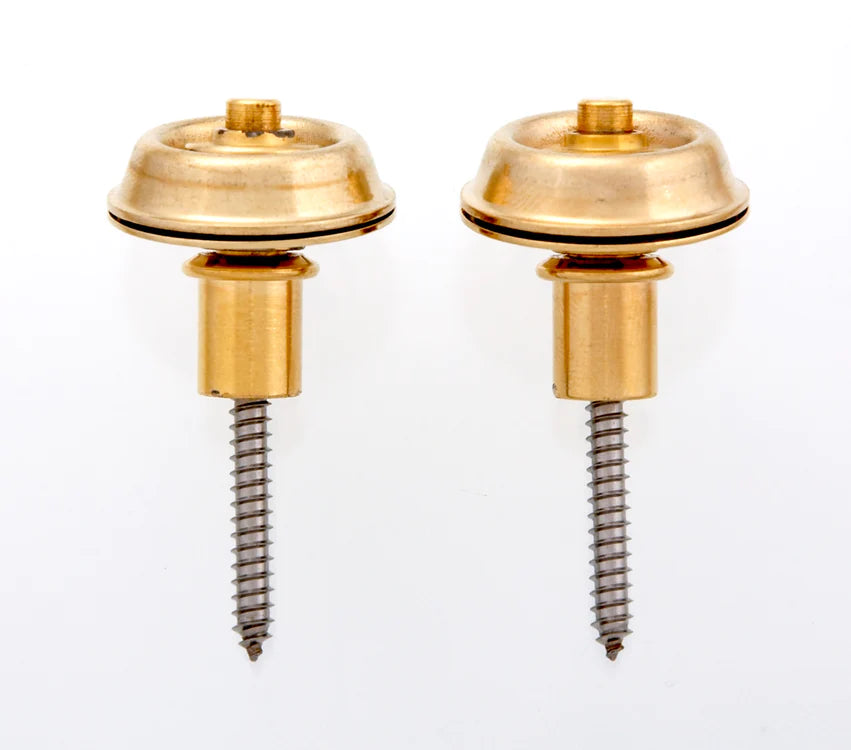

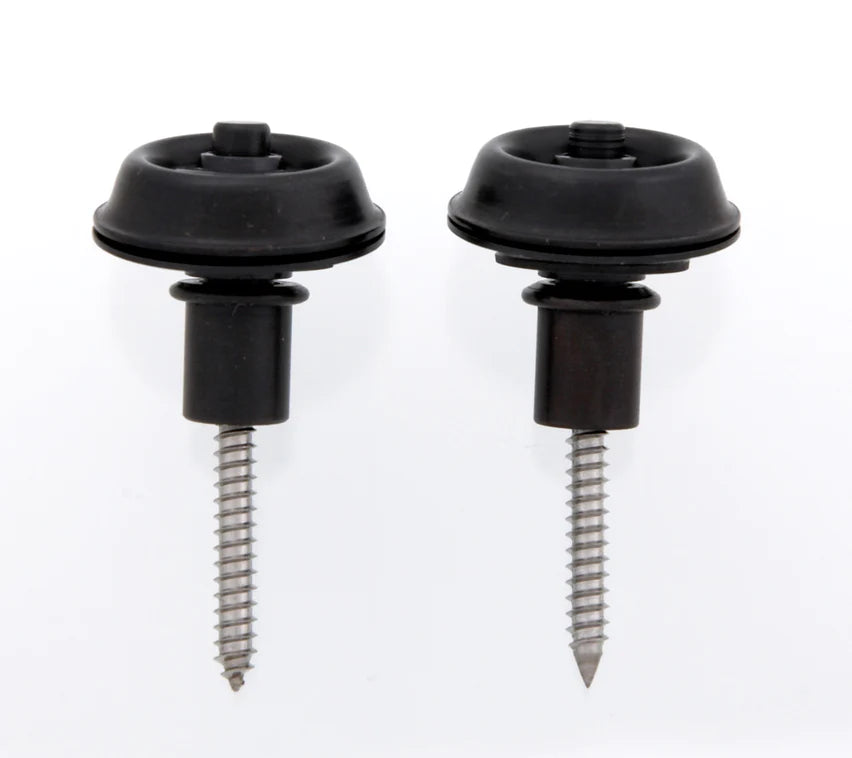

Dunlop Flush Mount Strap Lock Set
- Pack of 2
- Top Locking mechanism clips into bushing that is recessed into guitar body
- Push button to release strap
- Strap goes in between the bell cover and the large washer around the release mechanism
- E type sirclip (included) attaches underneath large washer
- Release mechanism then clicks into place in the body mounted bushing
- Mounting Screws included
- Outside diameter of Bell section/Large Washer: 25mm
- Outside diameter of Body bushing: 9.2mm
- Diameter of lip on bushing: 12mm
- Height of bushing under lip: 10mm
